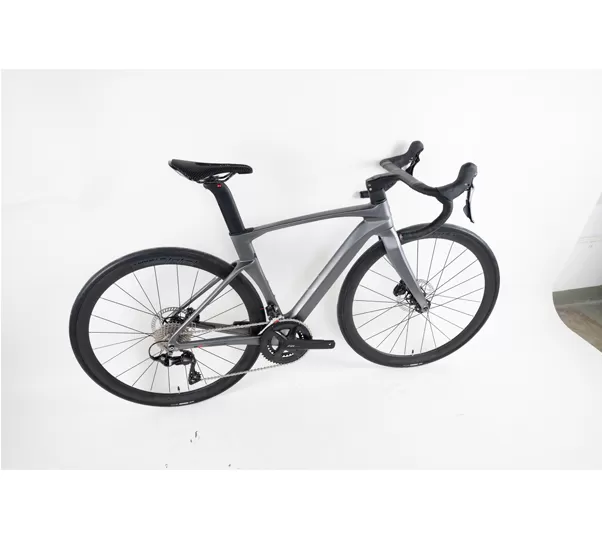

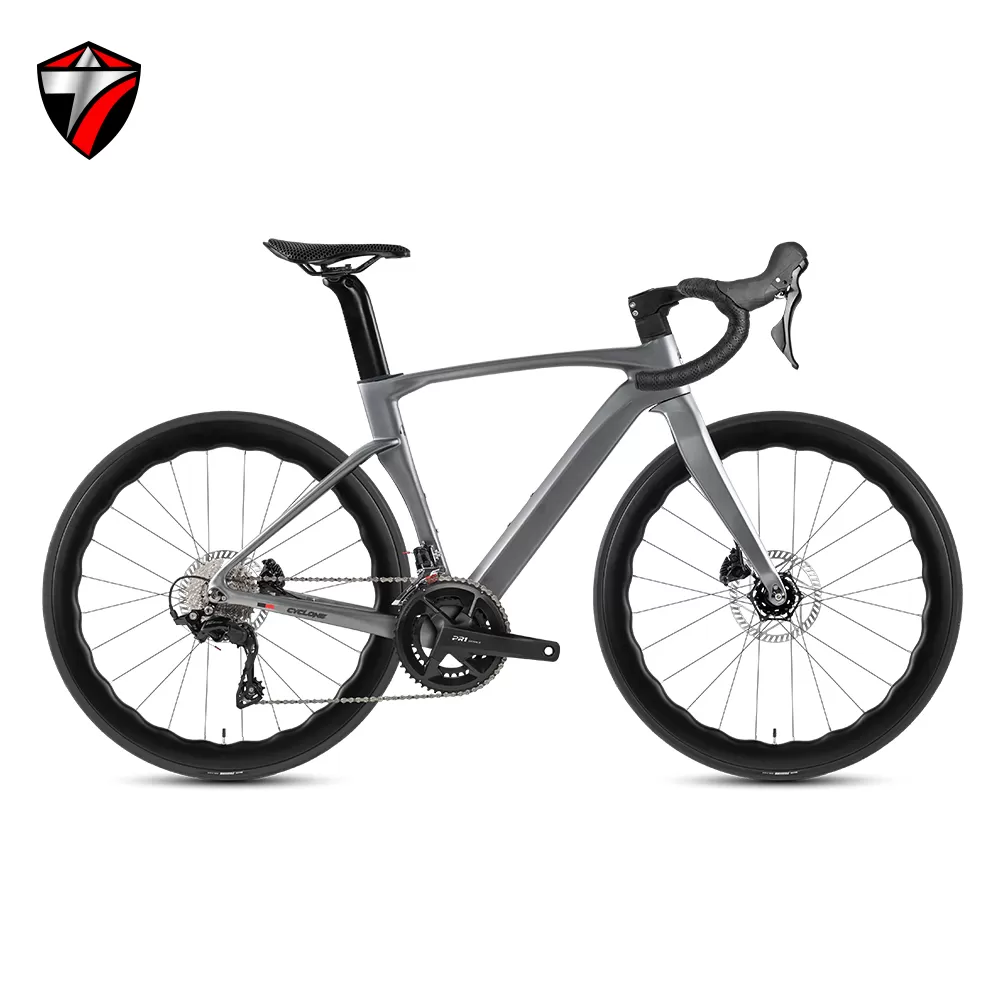

| Vehicle Model | Cyclone CYCLONE - Third Generation (R7120) | ||
| Standard Category | R7120-24 speed small set aluminum wheel carbon handle | R7120-24 speed small set wave carbon ring carbon handle | |
| Wheel Diameter Size | 700C | ||
| Frame Height Dimension | 43.5cm / 46cm / 48cm / 50cm / 52cm / 54cm | ||

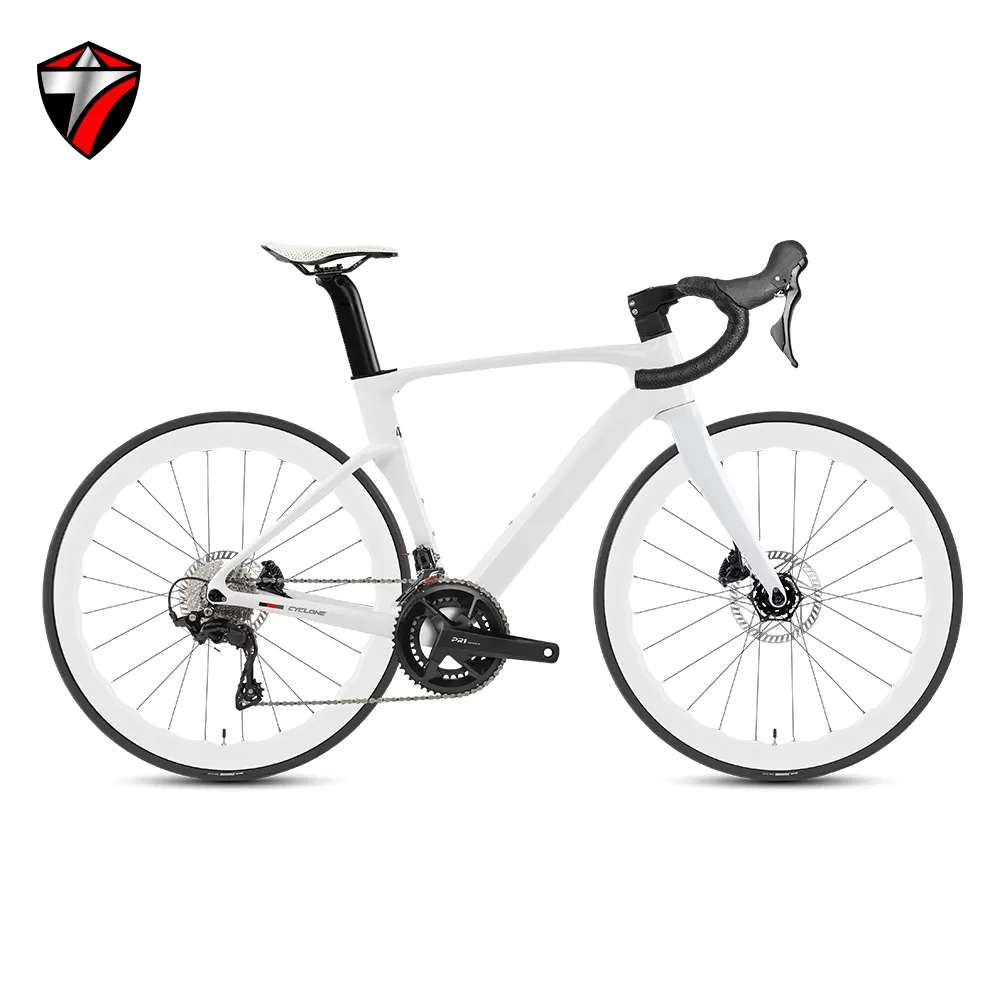

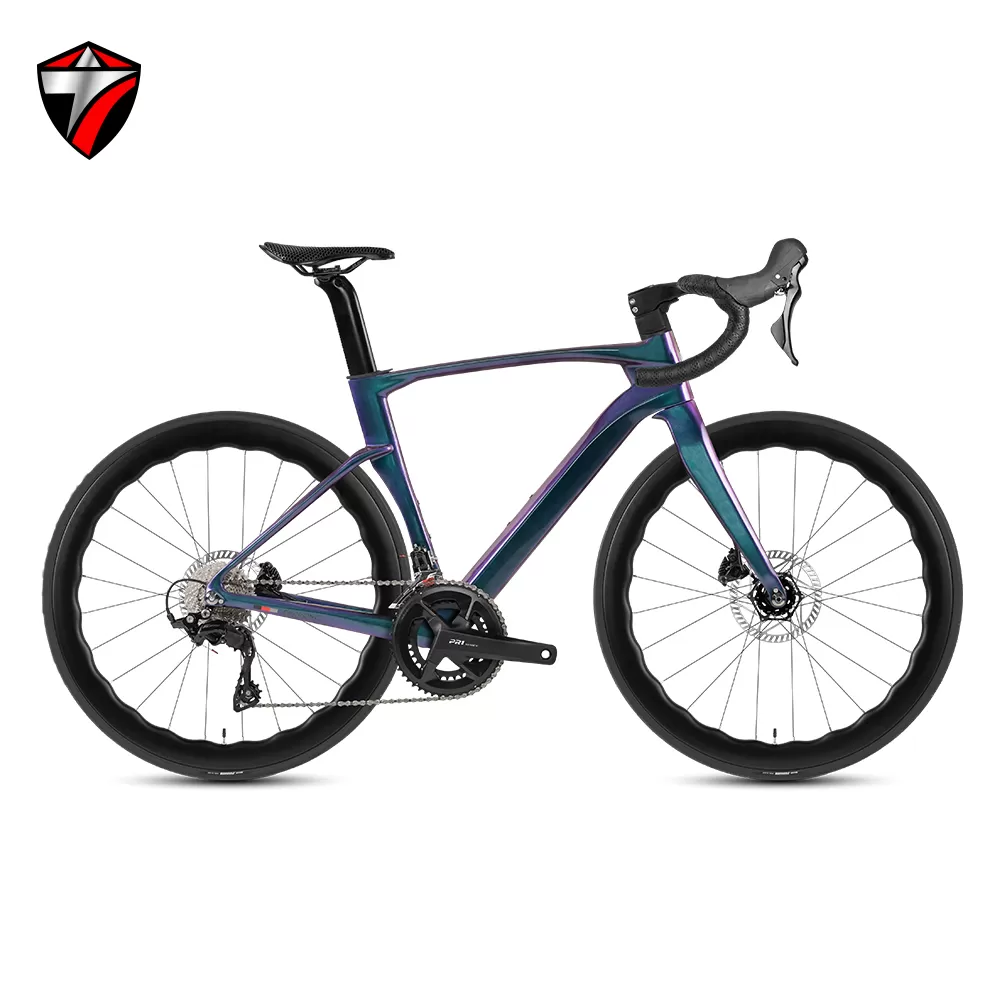

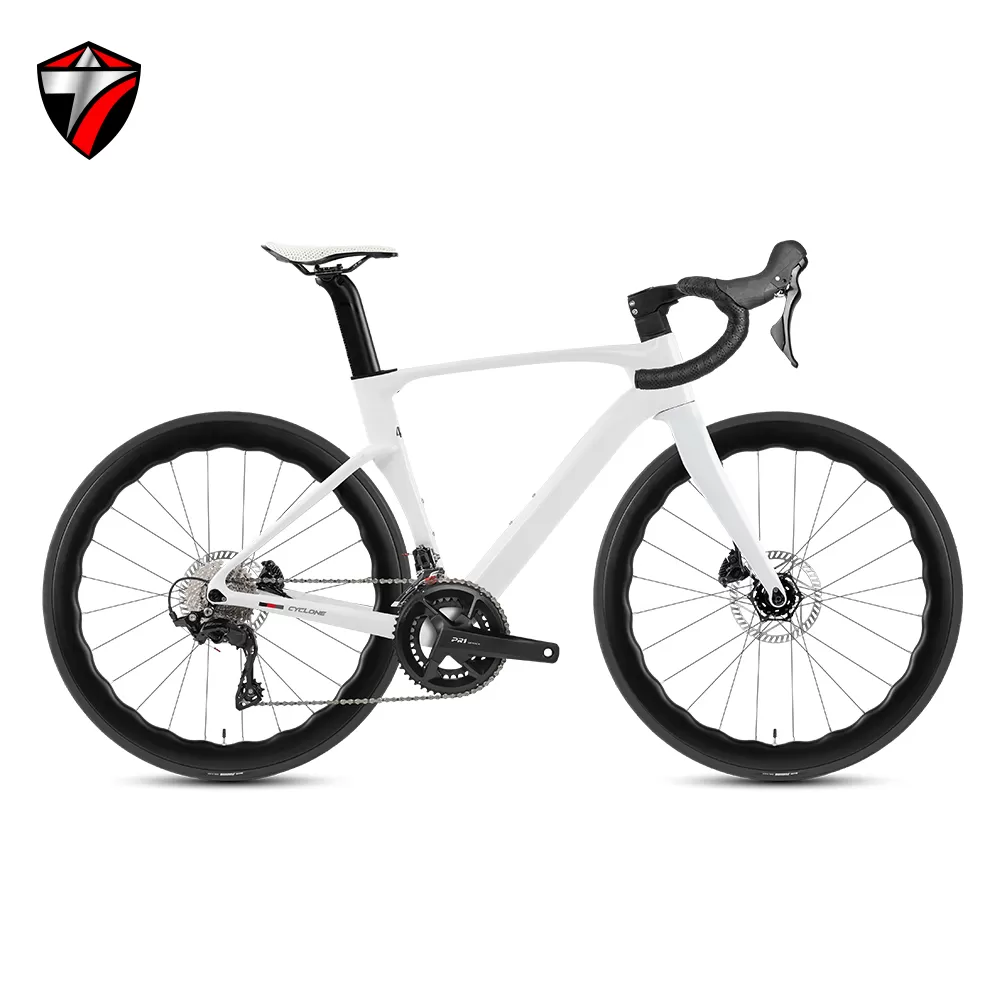

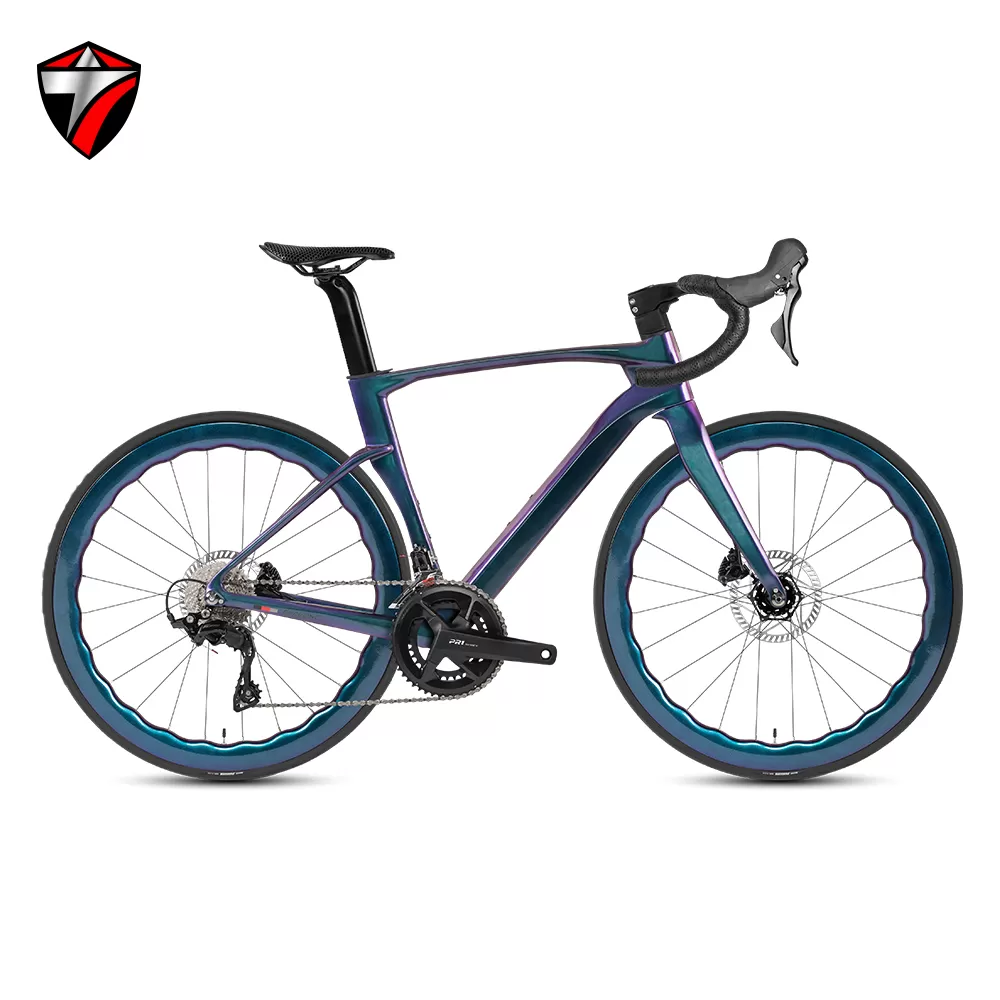

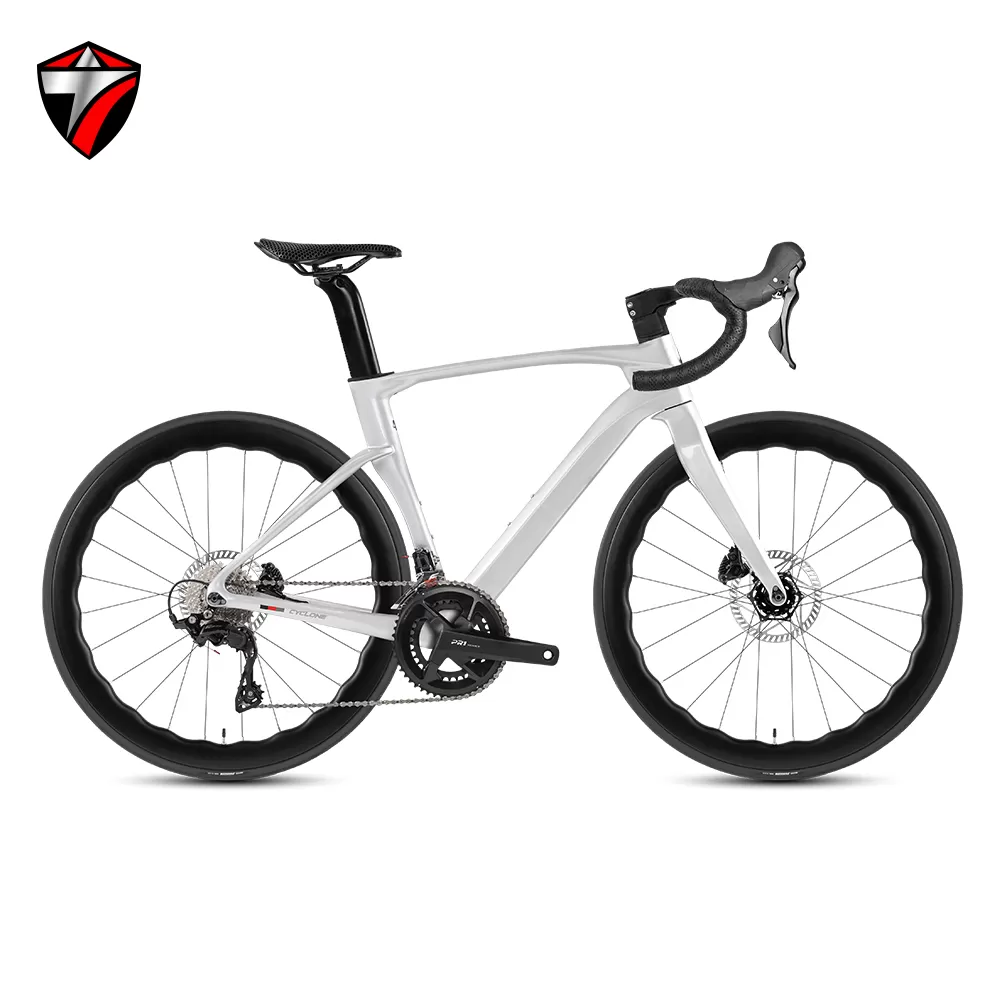

| Vehicle Color | White/matte black/matte dark gray/silver, fully color changing | ||
| Net Weight of the Whole Vehicle | 9.3KG | 9.3KG | |
| Frame | Frame | CYCLONE-3rd Generation (Disc Brake Barrel Shaft 12 * 142) High Modulus Carbon Fiber/Wind Breaking Racing/Internal Wiring/Matte or Bright Paint/UV Label | |
| Group up | Group up | TW high modulus carbon fiber/wind breaking integrated bending handle and stand 420 * 90mm/full internal wiring | |
| Seat Tube | Frame matching/high modulus carbon fiber/water breaking droplet type | ||
| Pipe Clamp | Frame matching/built-in lock buckle with protective rubber sleeve | ||
| Front Fork | Front Fork | CYCLONE-3rd Generation (Disc Brake Barrel Shaft 12 * 100) High Modulus Carbon Fiber/Highway Hard Fork | |
| Headset | Peilin 52 * 52mm | ||
| Grommet | Dedicated for internal wiring | ||
| Variable Speed | Hand Changes | SHIMANO 105/R7120-2 * 12 speed | |
| Front Derailleur | SHIMANO 105/R7100-2 speed | ||

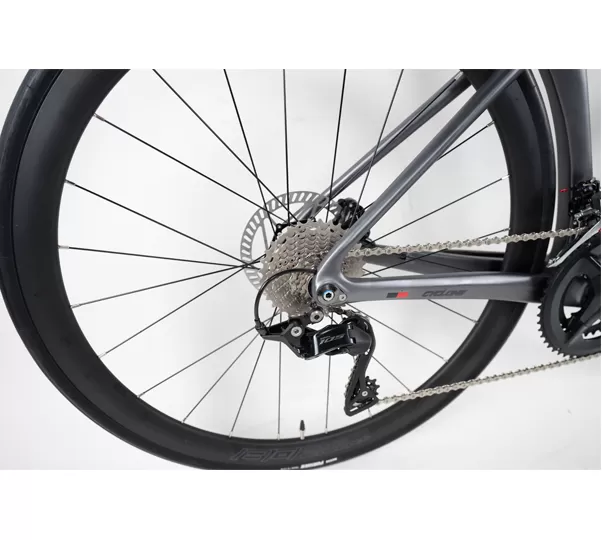

| Rear Derailleur | SHIMANO 105/R7100-12 speed | ||

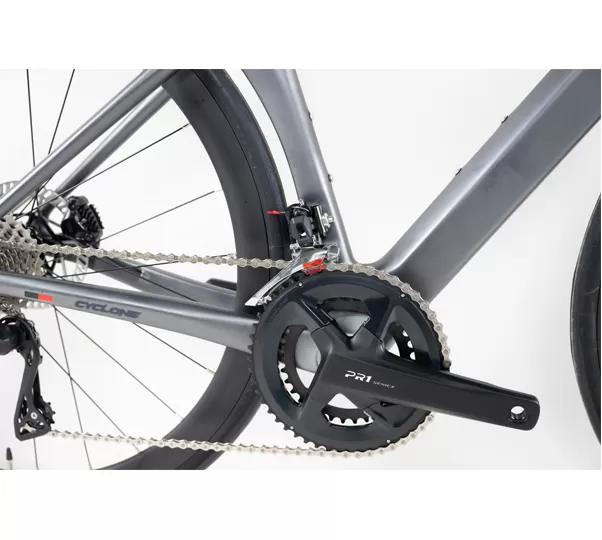

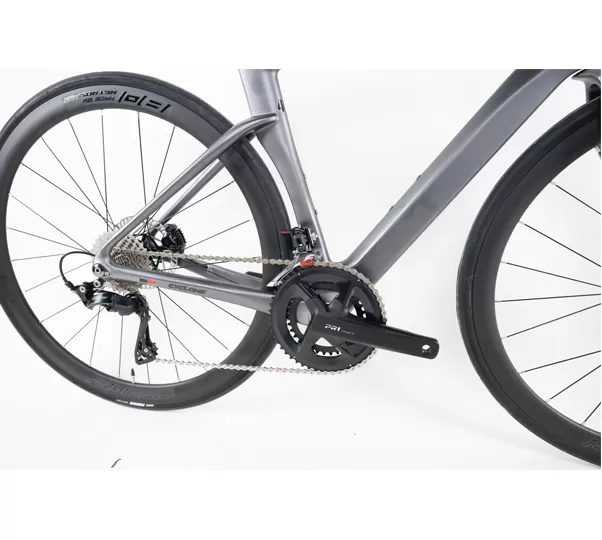

| Crankset | SENICX Yuyong-PR1 aluminum alloy hollow 34-50T | ||
| Flywheel | SUGEK-12 speed, 11-32T | ||
| Chain | SUMC-12 speed | ||
| Axis | Thread T47 * 24mm, hollow Peilin | ||
| Brake | Brake | SHIMANO 105/R7070 hydraulic disc brake, RS disc 160/160mm | |

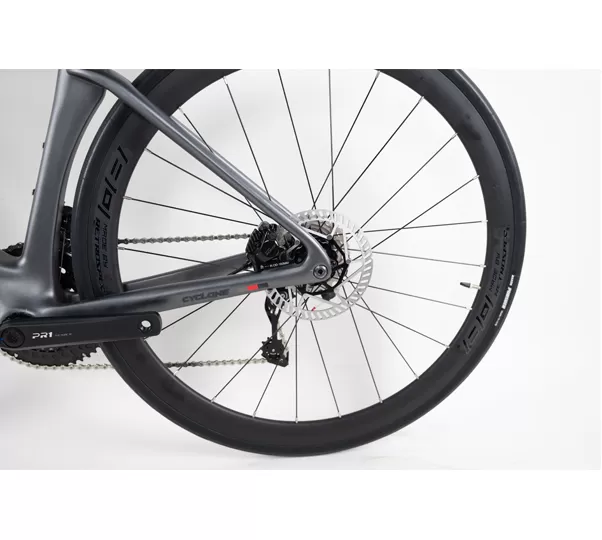

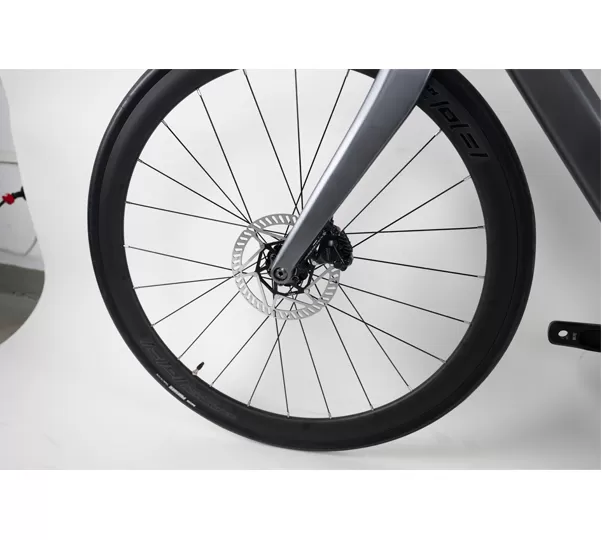

| Wheel Set | Flower Drum | RS lightweight aluminum alloy/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 | RS lightweight aluminum alloy+carbon fiber/four pin card/front 24 and rear 24 holes/disc brake barrel shaft F12 * 100_S12 * 142 |
| Rim | RS lightweight aluminum alloy/double-layer reinforcement/38mm frame height/700C | RS high modulus carbon fiber/wave ring/frame height 50mm/opening | |
| Spoke | High rigidity round bar 14G | High rigidity flat bar 14G | |
| Tire | MAXXIS-PURSUER， Lightweight folding, 700 * 28C, black | ||
| Other | Tape | PU breathable, comfortable, non slip | |

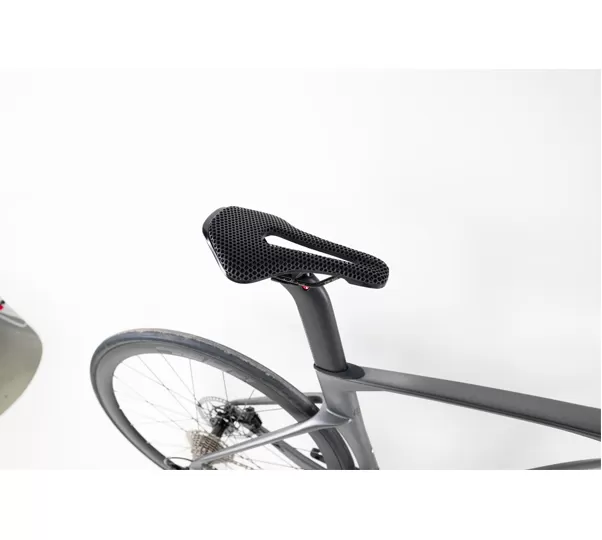

| Seat Cushion | 3D printed seat cushion | ||
| Pedal | Highway anti-skid foot pedal | ||
| Conduit | JAGWIRE | ||
